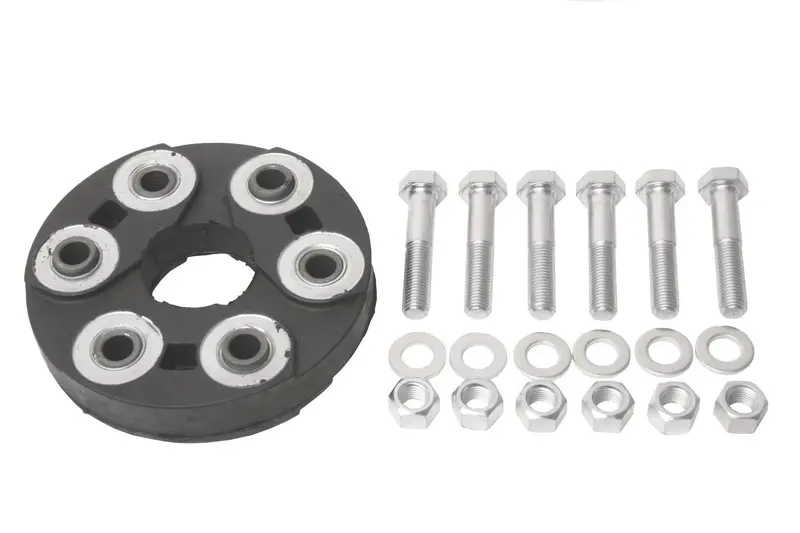

Mercedes-Benz Heavy-Duty Driveshaft Guibo and Universal Joint Set

Description

Mercedes-Benz Part Number: 2104100815
Other Part Number: 1294100015, 2024101415, 2024100915, 1704100015
Bryman Part Number: 2100815
Brand: Bryman Made in Taiwan
Warranty: 12 months
Criteria
Joint Type Disc Joint
Fitment Front or rear
Pitch Circle Ø 100 mm
Width 29.8 mm
Inner Diameter 46 mm
Outer diameter 140 mm

For the following vehicles
Vehicle Model year kW HP cc Design
C-CLASS (W202) C 200 Kompressor (202.025)
Chassis no. from: F 381314
Fitting Position: Rear
More information 10.1995 – 05.2000 132 180 1998 Sedan
C-CLASS (W202) C 200 Kompressor (202.025)
Chassis no. from: F 381314
Fitting Position: Rear
More information 11.1996 – 05.2000 141 192 1998 Sedan
C-CLASS (W202) C 230 Kompressor (202.024)
Chassis no. to: A 681469, F 562140
Fitting Position: Rear
More information 10.1995 – 05.2000 142 193 2295 Sedan
C-CLASS (W202) C 250 Turbo-D (202.128)
Chassis no. from: A 456789, F 519819
Transmission Type: Manual Transmission
Fitting Position: Front
Transmission Type: Automatic Transmission
Fitting Position: Front
Fitting Position: Rear
More information 10.1995 – 05.2000 110 150 2497 Sedan
C-CLASS (W202) C 280 (202.028)
Fitting Position: Front and Rear
More information 05.1993 – 05.2000 142 193 2799 Sedan
C-CLASS (W202) C 36 AMG (202.028)
Fitting Position: Front and Rear
More information 05.1994 – 05.2000 206 280 3606 Sedan
C-CLASS T-Model (S202) C 200 T CDI (202.194)
Fitting Position: Front
More information 03.1998 – 03.2001 75 102 2151 Wagon
C-CLASS T-Model (S202) C 200 T Kompressor (202.082)
Fitting Position: Rear
More information 11.1996 – 03.2001 141 192 1998 Wagon
C-CLASS T-Model (S202) C 220 T CDI (202.193)
Fitting Position: Front and Rear
More information 09.1997 – 03.2001 92 125 2151 Wagon
C-CLASS T-Model (S202) C 230 T Kompressor (202.085)
Fitting Position: Rear
More information 06.1997 – 09.2000 142 193 2295 Wagon
C-CLASS T-Model (S202) C 250 T Turbo-D (202.188)
Fitting Position: Rear
Transmission Type: Automatic Transmission
Fitting Position: Front
Chassis no. from: F 519819
Transmission Type: Manual Transmission
Fitting Position: Front
More information 06.1996 – 03.2001 110 150 2497 Wagon
CLK (C208) 200 Kompressor (208.345)
Fitting Position: Rear
More information 06.1997 – 06.2000 141 192 1998 Coupe
CLK (C208) 230 Kompressor (208.347)
Fitting Position: Rear
More information 06.1997 – 06.2000 142 193 2295 Coupe
CLK Convertible (A208) 200 Kompressor (208.445)
Fitting Position: Rear
More information 03.1998 – 06.2000 141 192 1998 Convertible
CLK Convertible (A208) 230 Kompressor (208.447)
Fitting Position: Rear
More information 03.1998 – 06.2000 142 193 2295 Convertible
CLK Convertible (A208) 320 (208.465)
Fitting Position: Rear
More information 03.1998 – 03.2002 160 218 3199 Convertible
E-CLASS (W124) E 280 (124.029)
Fitting Position: Front and Rear
More information 06.1993 – 06.1995 142 193 2799 Sedan
E-CLASS (W210) E 280 (210.053)
Fitting Position: Rear
Chassis no. to: A 084728, J 013436
Transmission Type: Automatic Transmission
Fitting Position: Front
More information 01.1996 – 06.1997 142 193 2799 Sedan
E-CLASS (W210) E 280 (210.063)
Chassis no. to: A 408865
Fitting Position: Rear
Chassis no. to: A 408865
Transmission Type: Automatic Transmission
Fitting Position: Front
More information 12.1996 – 03.2002 150 204 2799 Sedan
E-CLASS (W210) E 280 4-matic (210.081)
Fitting Position: Rear
More information 12.1996 – 03.2002 150 204 2799 Sedan
E-CLASS (W210) E 290 Turbo-D (210.017)
Fitting Position: Rear
Transmission Type: Automatic Transmission
Fitting Position: Front
More information 03.1996 – 07.1999 95 129 2874 Sedan
E-CLASS (W210) E 320 (210.055)
Fitting Position: Front and Rear
More information 06.1995 – 06.1997 162 220 3199 Sedan
E-CLASS (W210) E 320 (210.065)
Chassis no. to: A 408865
Fitting Position: Front and Rear
More information 06.1997 – 03.2002 165 224 3199 Sedan
E-CLASS (W210) E 320 4-matic (210.082)
Chassis no. to: X 027613
Fitting Position: Rear
More information 06.1997 – 03.2002 165 224 3199 Sedan
E-CLASS T-Model (S124) E 280 T (124.088)
Transmission Type: Automatic Transmission
Fitting Position: Front
Fitting Position: Rear
More information 06.1993 – 06.1996 142 193 2799 Wagon
E-CLASS T-Model (S124) E 280 T (124.088)
Transmission Type: Automatic Transmission
Fitting Position: Front
Fitting Position: Rear
More information 06.1993 – 06.1996 145 197 2799 Wagon
E-CLASS T-Model (S210) E 280 T 4-matic (210.281)
Fitting Position: Rear
More information 12.1996 – 03.2003 150 204 2799 Wagon
E-CLASS T-Model (S210) E 290 T Turbo-D (210.217)
Transmission Type: Automatic Transmission
Fitting Position: Front
Fitting Position: Rear
More information 06.1996 – 07.1999 95 129 2874 Wagon
E-CLASS T-Model (S210) E 320 T (210.265)
Chassis no. to: A 408865
Fitting Position: Front and Rear
More information 12.1996 – 03.2003 165 224 3199 Wagon
E-CLASS T-Model (S210) E 320 T 4-matic (210.282)
Fitting Position: Rear
More information 12.1996 – 03.2003 165 224 3199 Wagon
KOMBI T-Model (S124) 280 TE (124.088)
Engine Code: M 104.942
Transmission Type: Automatic Transmission
Fitting Position: Front
Fitting Position: Rear
Engine Code: M 104.942
Fitting Position: Front and Rear
More information 10.1992 – 06.1993 145 197 2799 Wagon
KOMBI T-Model (S124) 300 TE-24 (124.091)
Fitting Position: Front and Rear
More information 09.1989 – 08.1992 162 220 2960 Wagon
S-CLASS (W140) 300 SE 2.8 (140.028)
Chassis no. from: A 142735
Transmission Type: Manual Transmission
Fitting Position: Front
Transmission Type: Automatic Transmission
Fitting Position: Front
Fitting Position: Rear
More information 01.1993 – 10.1998 145 197 2799 Sedan
S-CLASS (W140) 300 SE, SEL/S320 (140.032, 140.033)
Engine Code: M 104.990, M 104.994
Chassis no. to: A 328810
Fitting Position: Front
Fitting Position: Rear
Engine Code: M 104.990, M 104.994
Fitting Position: Front and Rear
More information 03.1991 – 10.1998 170 231 3199 Sedan
S-CLASS (W140) S 280 (140.028)
Chassis no. from: A 142735
Transmission Type: Manual Transmission
Fitting Position: Front
Transmission Type: Automatic Transmission
Fitting Position: Front
Fitting Position: Rear
More information 02.1993 – 10.1998 142 193 2799 Sedan
SL (R129) 280 (129.058)
Fitting Position: Rear
More information 08.1993 – 10.2001 142 193 2799 Convertible
SL (R129) 320 (129.063)
Fitting Position: Front and Rear
More information 09.1993 – 10.2001 170 231 3199 Convertible
